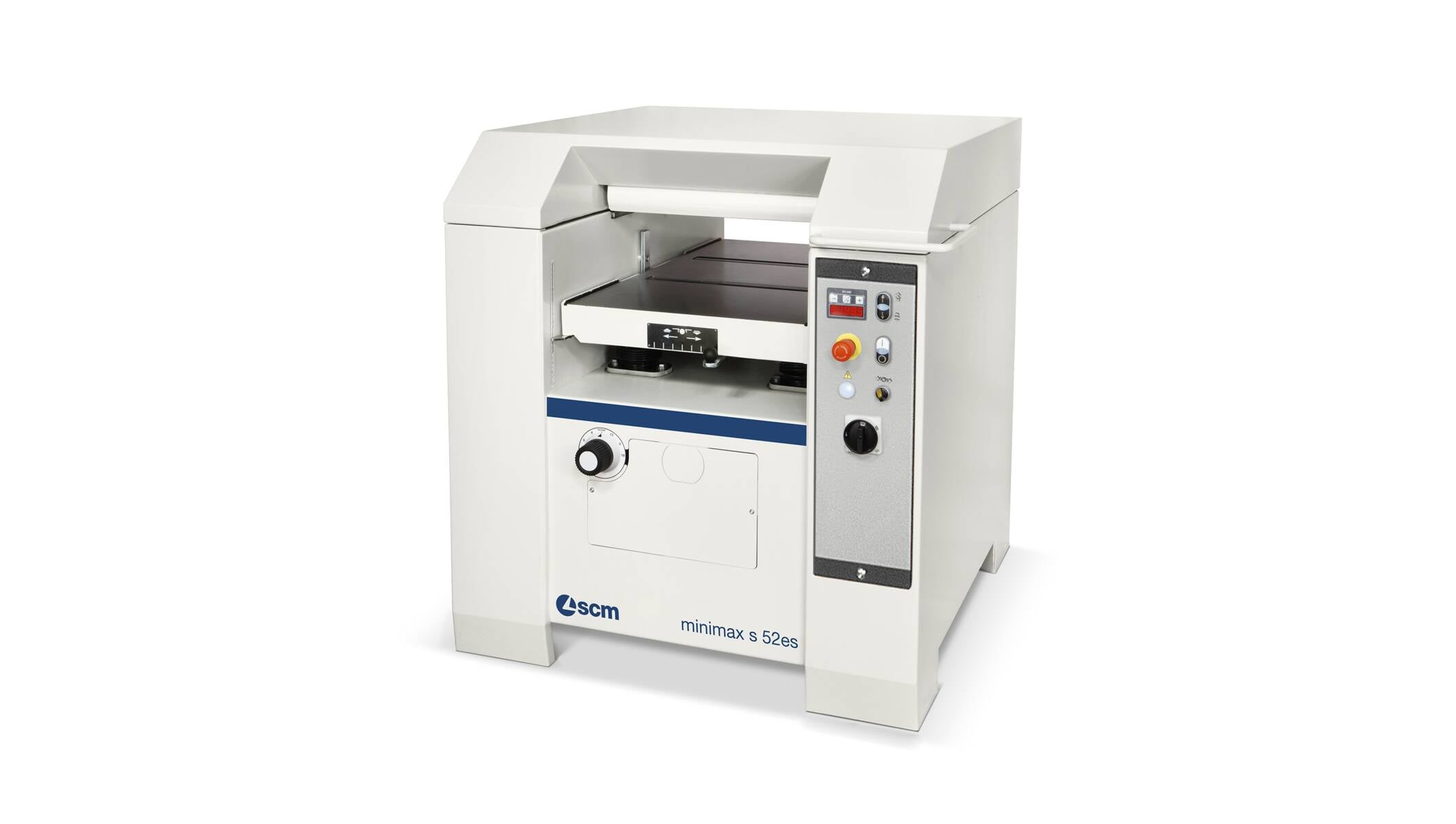

minimax s 52es
(512) 931-1962
Die Dickenhobelmaschine mit 520 mm Arbeitsbreite, professionell, massiv und kompakt, für eine hochflexible Produktion; ideal für den anspruchsvollen Handwerker und Zimmerer.
Vorteile
-
Optimales Hobeln bei minimalem Aufwand mit einem Hobelwellendurchmesser von 120 mm mit 4 Messer.
-
Stability over time
For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threazds dust protected. -
“Xylent” spiralknife cutter block with 3 series of knives
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
Technische Daten
| s 52es | ||
| Working width | mm | 520 |
| Cutterblock diameter / no. of standard knives | mm/n. | 120 / 4 |
| Dimension of standard knives | mm | 520 x 30 x 3 |
| Max. stock removal | mm | 5 |
| Thicknessing table dimensions | mm | 520 x 775 |
| Feed speed on thicknesser | m/min | 5 / 8 / 12 / 18 |
| Min. ÷ max. working height on thicknesser | mm | 3 ÷ 240 |
| Three-phase motors starting from | kW/Hz | 7 (9) / 50 (60) |
