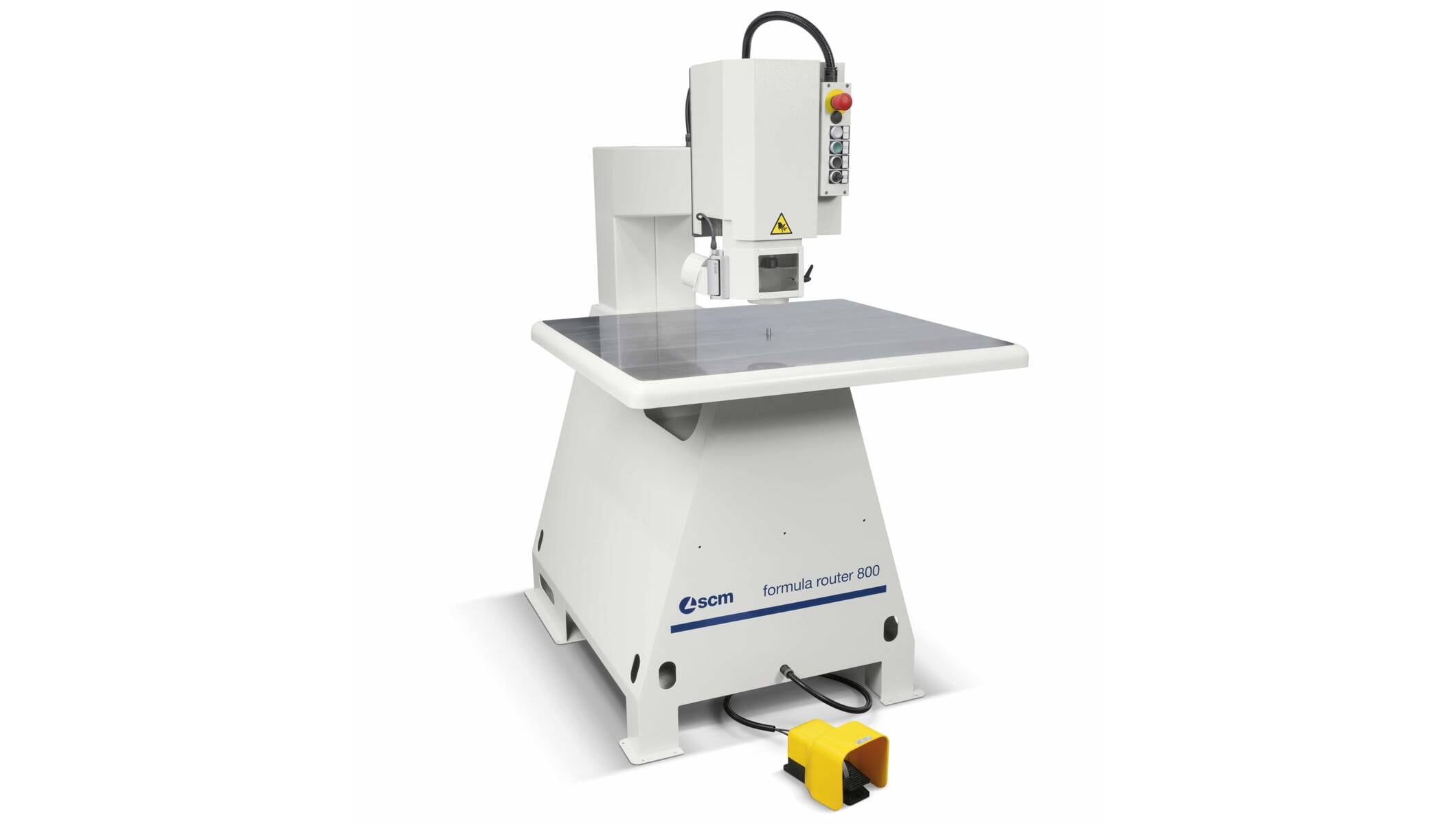

formula router 800
(512) 931-1962
Alle Maschinen der „formula“ Produktlinie sind von SCM garantiert, und bieten ein entsprechend hohes Qualitäts- und Zuverlässigkeitsniveau.
Vertikale Oberfräse mit pneumatischer Kopfanhebung, für Handwerker und professionelle Werkstätten.
Vorteile
-
Effortless and dynamic

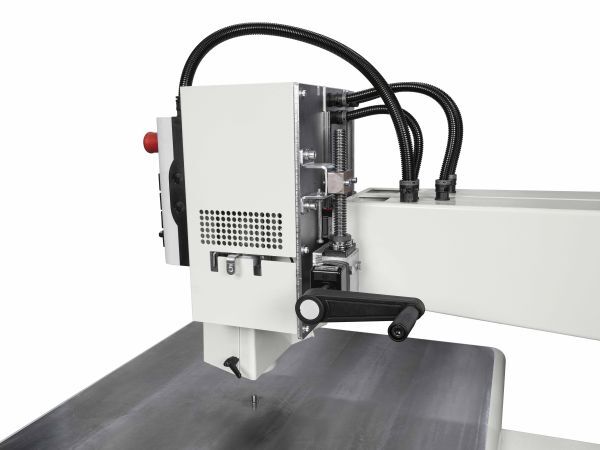

The rotating head is equipped with a 5-stop adjustable revolving turret for a quick setting of the working positions. -
Simple and effective

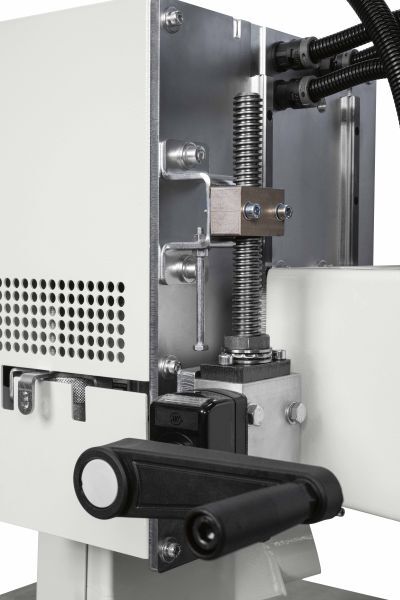

Routing head with electrospindle and vertical adjustment by means of handwheel. -
User friendly

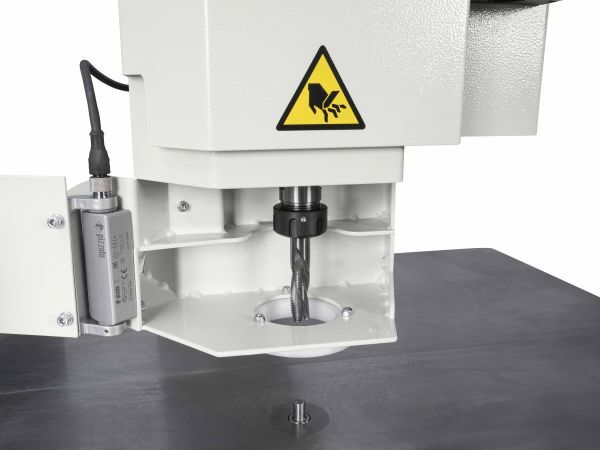

The adjustable stop prevents the tool from hitting the worktable.
Technische Daten
| formula | router 800 | |
| Spindle head and frame distance | mm | 800 |
| Variable spindle speed with inverter | rpm | 3000 ÷ 18000 |
| Motor power | kW | 2,2 |
| Pneumatic shaft vertical stroke | mm | 80 |
| Number of revolving turret with adjustable stops | 5 | |
| Worktable dimensions | mm | 960 x 880 |
