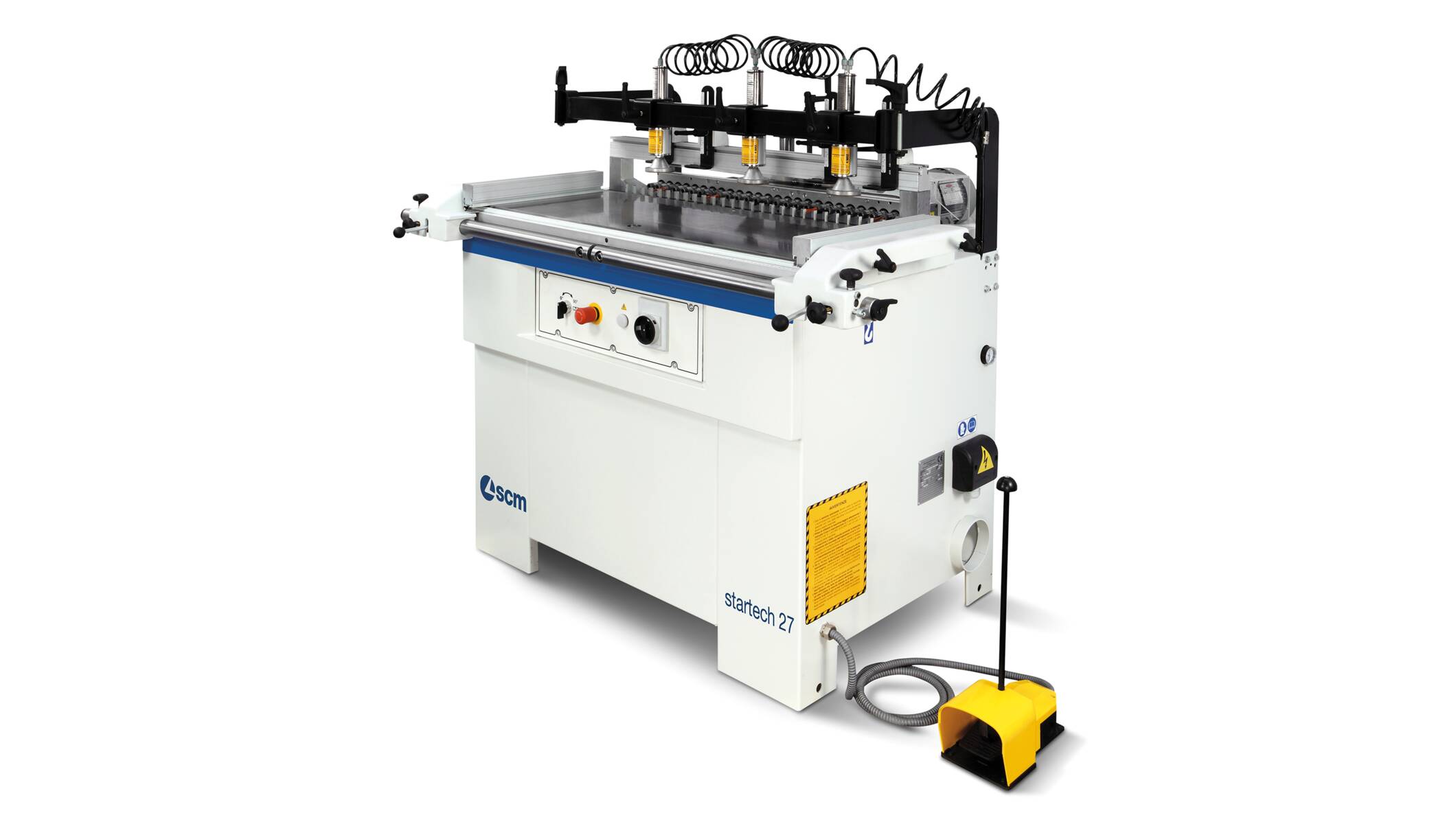

Maschinenfoto startech
Hervorragende Qualität beim Bohren
Einzelkopf-Bohrautomat mit 27 Spindeln
Vielseitig, reichhaltige Ausstattung - intelligent wegklappbare Seitenanschläge auf dem Tisch und mit Anschlagverlängerung L=3mt

Vorteile

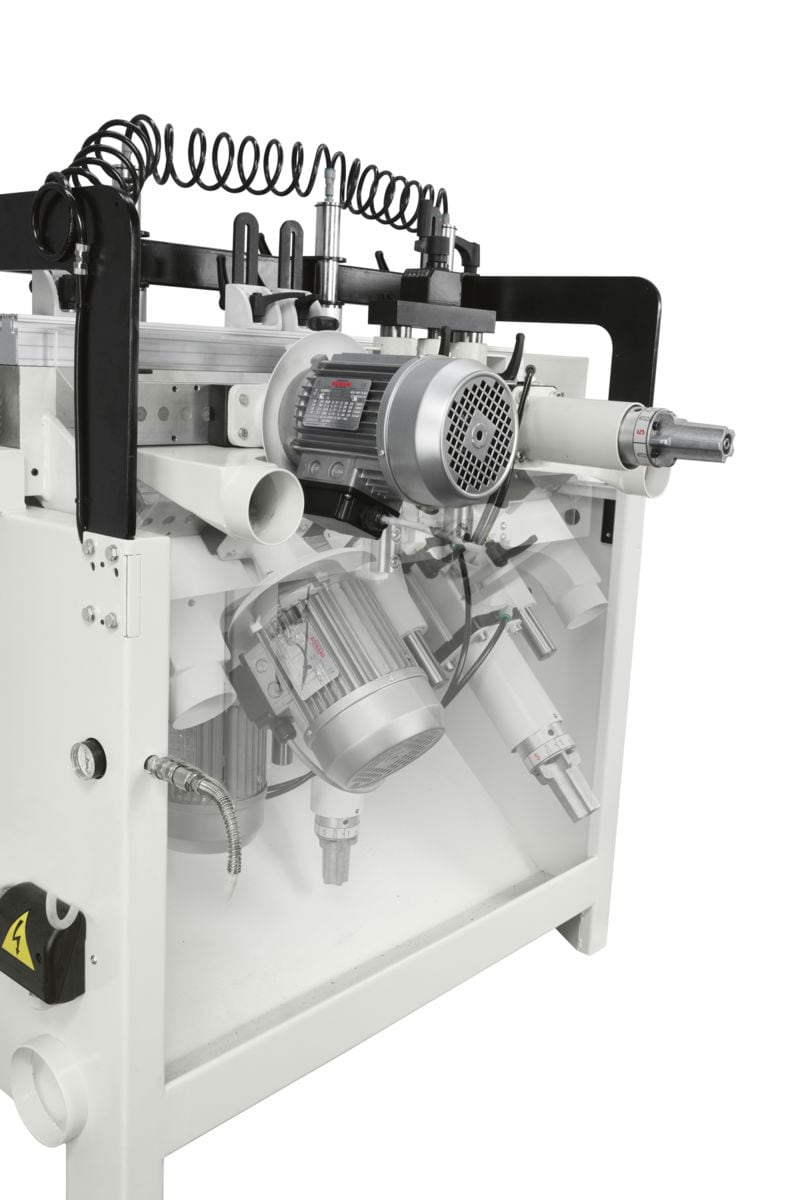

  • Convenient selector, as standard, for the 0°- 45°- 90° automatic pneumatic head rotation

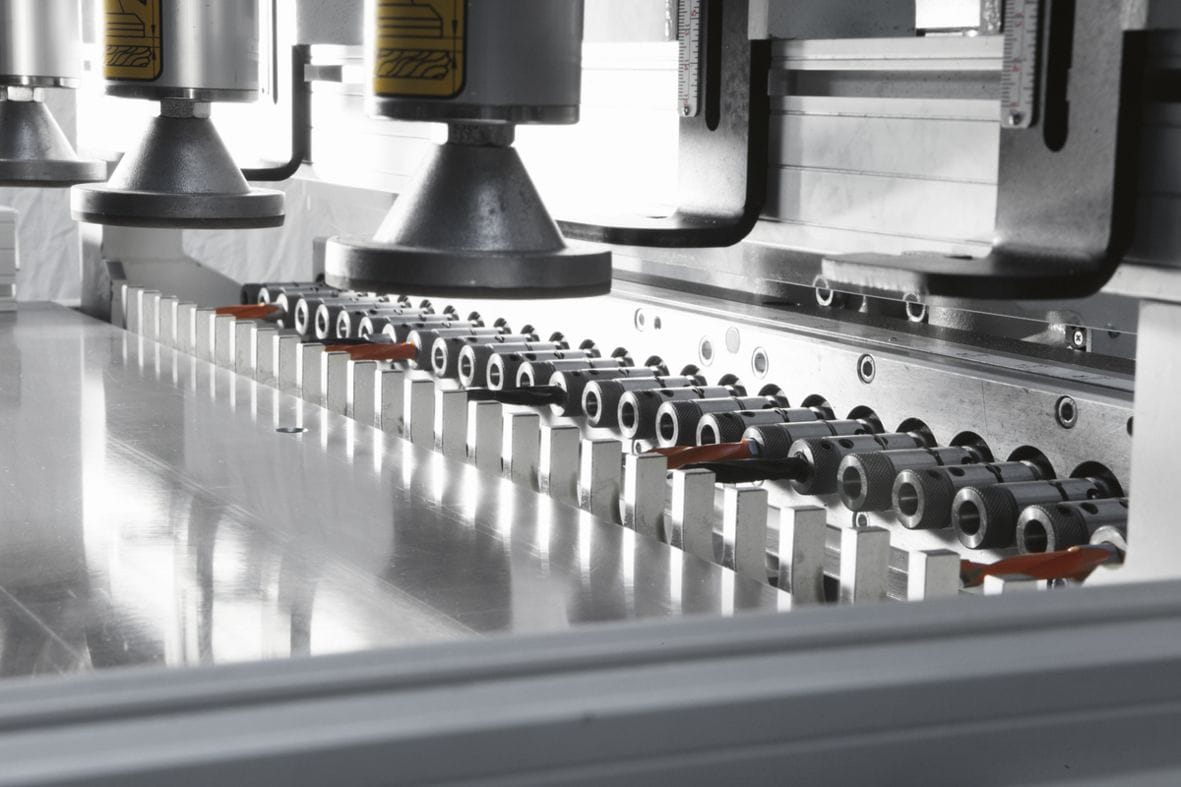

  • Rapid set up due to the 21/27 spindles with quick-release fittings.

  • Precise and practical with the nonius decimal scale and micrometric guides travel.

  • 5 position revolving turret for always setting the correct depth.

Technische Daten

Startech   27 21
Number of spindles n. 27 21
Centre distance between spindles mm 32 32
Spindles rotating speed rpm 3000 2800
Spindles motor power Hp 2 2.4

Media

  • Startech 27
