action tf
(512) 931-1962

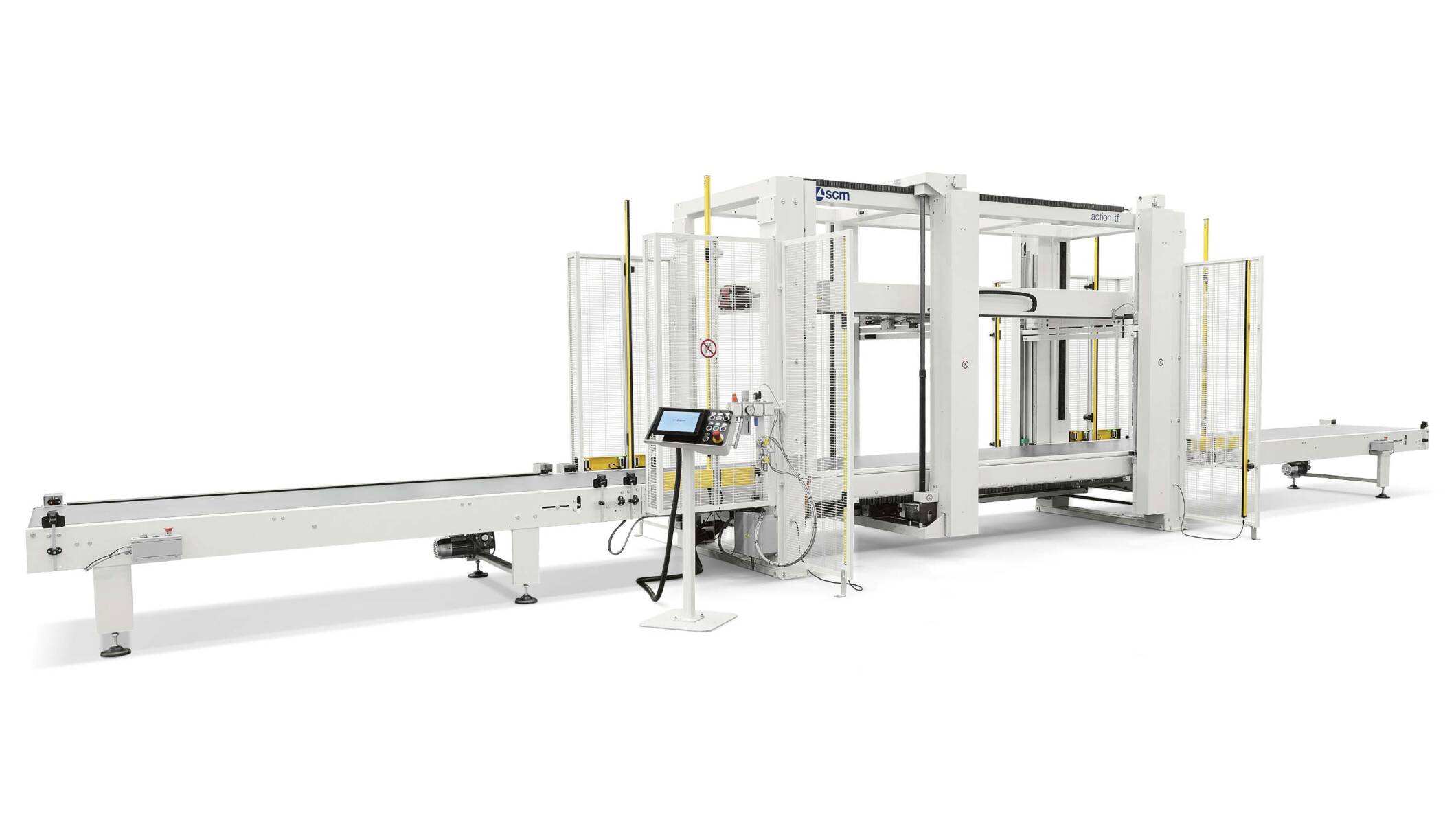

action tf automatic through-feed electro mechanical cabinet clamp is the perfect solution for the final assembly of cabinets. It is suitable for all cabinet manufacturers that want an excellent result. The machine thanks to its automatisms can be perfectly integrated into a high-volume production line. Up to 300 assembled cabinets per day.
Advantages
-

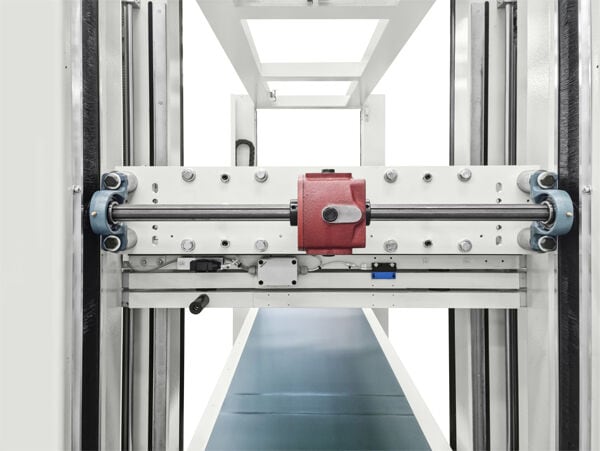

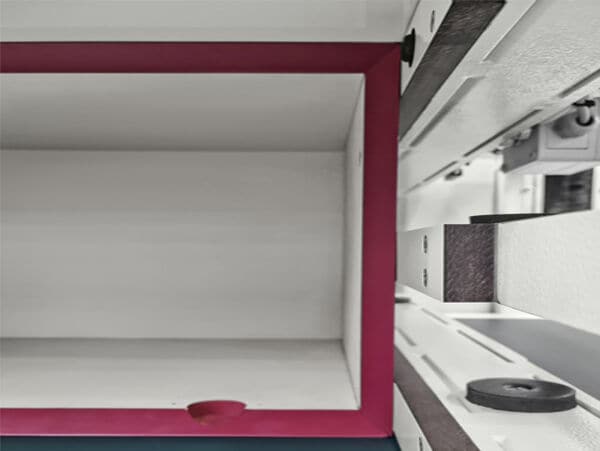

Efficient squaring of cabinets even with 45° joints, with an integrated rack and pinion system.
-
Best performance due to installed brushless motors which allow the cycle’s maximum speed execution
-
Versatile use thanks to 10" touch screen monitor on bolted pedestal for managing various automatic pressing programs. thanks to 10" touch screen monitor on bolted pedestal for managing various automatic pressing programs.
-

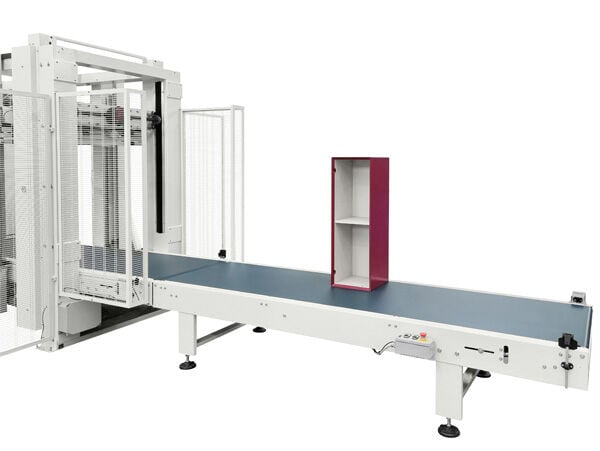

Automatic loading and unloading of the cabinet on belt conveyor with automatic furniture size recognition system.
Technical data
| action tf 2500 | action tf 3050 | ||
| Installed power | kW | 13 | 16,5 |
| Working sizes - max capacity - min capacity |
mm mm |
2500 x 1250 x 800 250 x 250 x 250 |
3050 x 1250 x 800 250 x 250 x 250 |
| Maximum vertical thrust | kg | 1500 | 1900 |
| Maximum side thrust | kg | 1200 | |
| Working table height | mm | 600 | 620 |
